Soft Seal Ductile Iron Ball Valve Flexible Leakproof Flow Control Ball Valve

Name: Soft Seal Ductile Iron Ball Valve Flexible Leakproof Flow Control Ball Valve
Brand: SUFA
Price: 20 USD

Quality Soft Seal Ductile Iron Ball Valve Flexible Leakproof Flow Control Ball Valve for sale

Brand Name : SUFA

Model Number : Q41F

Certification : (DNV)ISO9001,(DNV)ISO14001,CE0035

Place of Origin : China

MOQ : 1

Price : USD20~500 /PC

Payment Terms : T/T, Western Union, MoneyGram, L/C, D/P

Supply Ability : 500PCS per month

Delivery Time : within 8-12 working days upon receipt of payment

Packaging Details : Wooden box, ply-wood box, carton box, pallet

Size : DN125

Pressure : 150LB

Connection Type : Thread

Body/Bonnet : WCB,LCC,LCB,CF8,CF8M,CF3M

Ball/Stem : 316,316L,304

Name : DSQ41F-16 DN100 DIN Standard Cast Iron soft seal Ball Valve

Contact Now

DSQ41F-16 DN100 DIN Standard Cast Iron soft seal Ball Valve

Design Features

1. Adjustable fire-safe stem packing
2. Machined fire-lip act as meta backup seat has excellent fire-safe capability
3. Anti-blow out stem
4. Anti-static device
5. Full rated bi-directional shut-off
6. Optional lockable handle
7. Spiral wound gasket,prevent external leakage
8. Full rated dead end service

Main Parameter Specifications

1. Design and Manufacture: DIN3357/EN12516

2. Face to Face : DIN3202/EN558-1

DN50-DN100(F4)

DN125-DN200(F5)

3. End Flange Dimensions : DIN2533/EN1092-2/ISO7005-2

4. Nominal Pressure : 1.6Mpa

5. Pressure test : ISO5208

6. Materials: EN-JL 1040 or EN-GJL-250 (GG25) cast iron, ductile iron

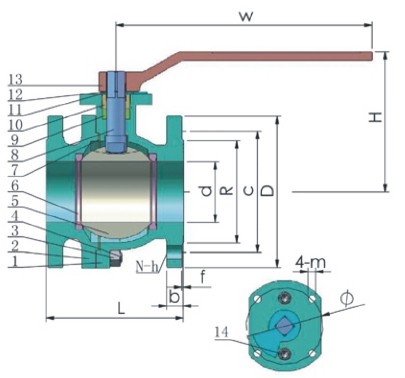

Main parts and materials

No.	Part Name	Material
1	Body	Cast Iron (FC200/FCD-S)
2	Bonnet	Cast Iron ( FC200/FCD-S )
3	Nut	Carbon steel
4	Bolting	Carbon steel
5	Ball	Stainless steel(SS304/SS316)
6	Seat	PTFE/RPTFE/TFM1600
7	Gasket	PTFE
8	Stem	Stainless steel(SS304/SS316)
9	Stem packing	PTFE
10	Gland flange	Cast Iron (FC200)
11	Stop collar	Carbon steel
12	Circlip	Steel
13	Lever	Ductile iron (FCD450)
14	Gland boltl	Carbon steel

Soft Seal Ductile Iron Ball Valve Flexible Leakproof Flow Control Ball Valve
